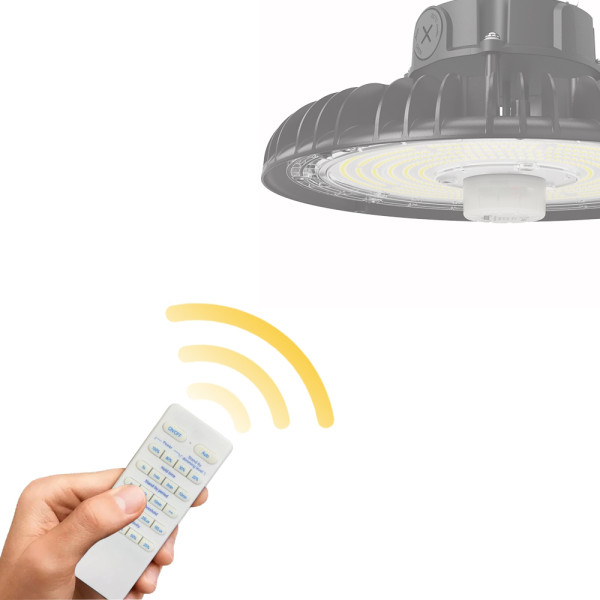

Adiding Remote Controller for ECO-RADAR Series Item NO.: B0BF4SW6SP1

This Remote Control is only for our UFO LED high bay - ECO-Radar series.

OPTION 1: Standard Light ONLY

Just plug and light it on. Suitable for most applications for normal daily use, switching on and off the light is controlled by your main switch.

OPTION 2: Standard Light + Motion Sensor(Purchased Separately)

Replace the black cover with the motion sensor on the bottom, then you can get an easy motion sensor high bay light. The sensor detection distance is around 38ft, when you walk into the area, the light will turn on; when you walk out of this area, the light will turn off after 5 seconds.

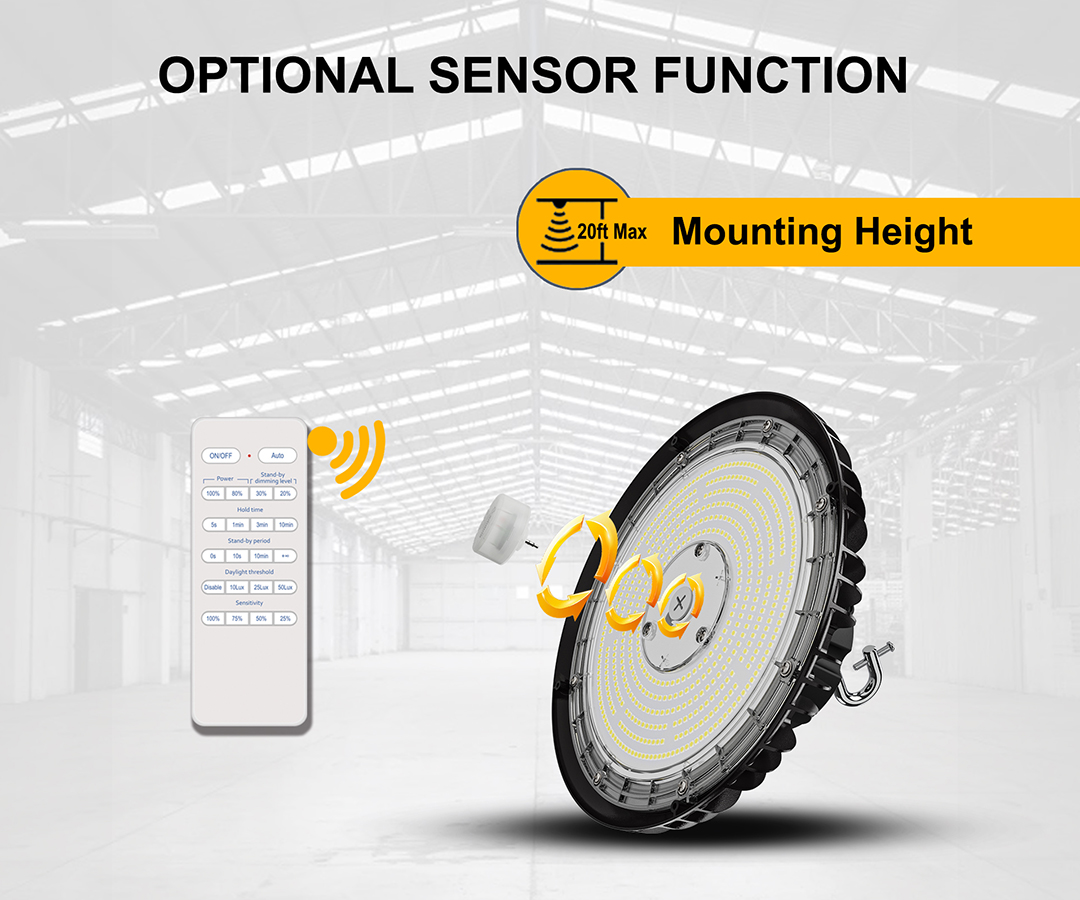

OPTION 3: Standard Light + Motion Sensor(Purchased Separately) + Remote Controller(Purchased Separately)

Besides the option 2 motion function, you can set the sensing distance, hold time, and stand-by period by the remote controller.

Motion Sensor Setting by Remote Controller

Auto

Sensor Mode

Power

Preset the light brightness output when motion detected.

Stand-by Dimming Level

The dimming level in the standby period.

Hold Time

Stet the time period the lamp remains at 100% illumination after no motion detected

Stand-by Period

Controls the time period the light remains at a low light level before it completely switches off in the long absence of people.

Daylight Threshold

The sensor can be set to only allow the light to illuminate below a defined ambient brightness threshold.

Item Weight

1.13 ounces

Package Dimensions

‎4.92 x 1.85 x 0.91 inches
